How to set up and use your Carbtune Pro        Instructions for previous Carbtune II

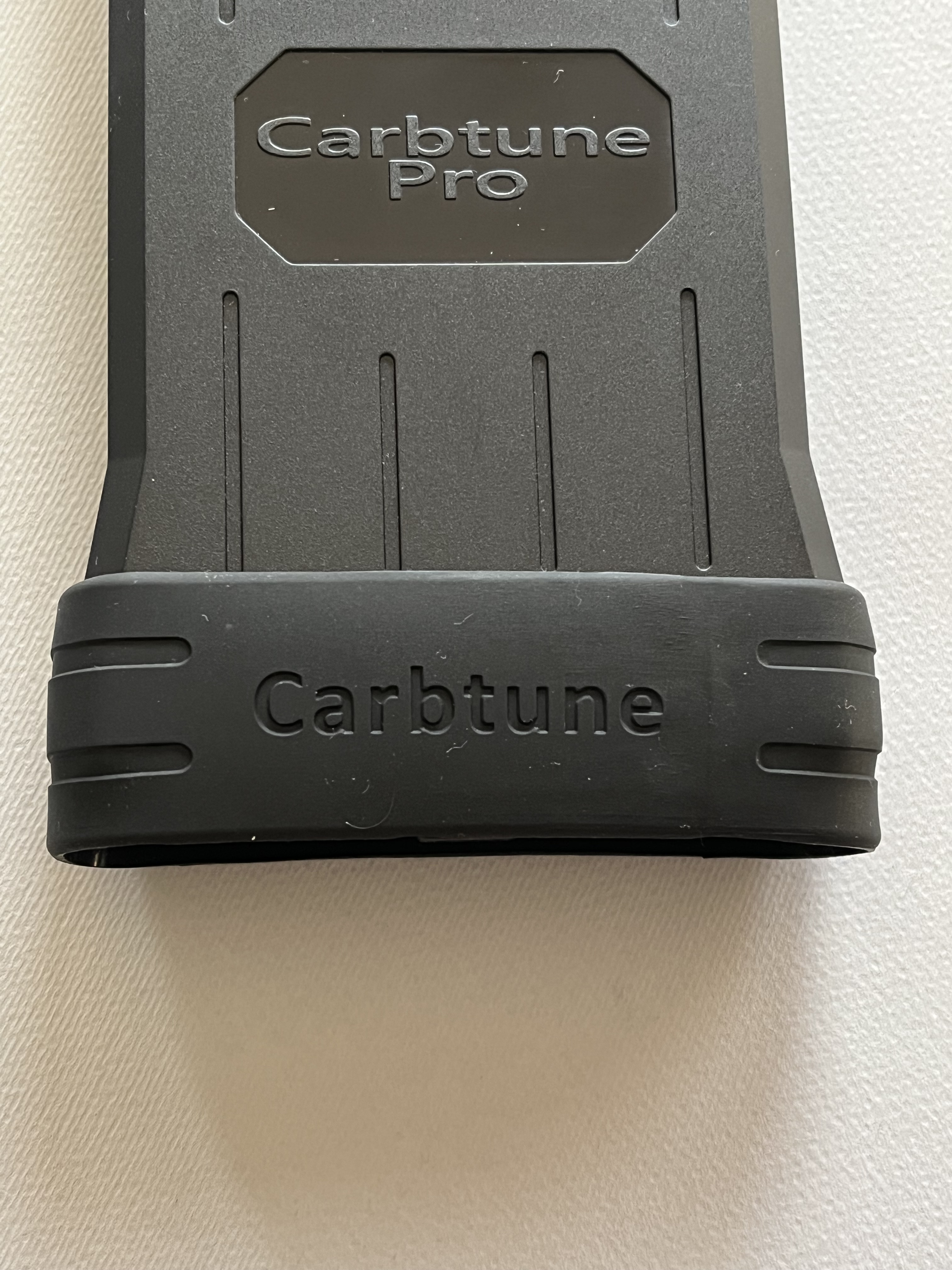

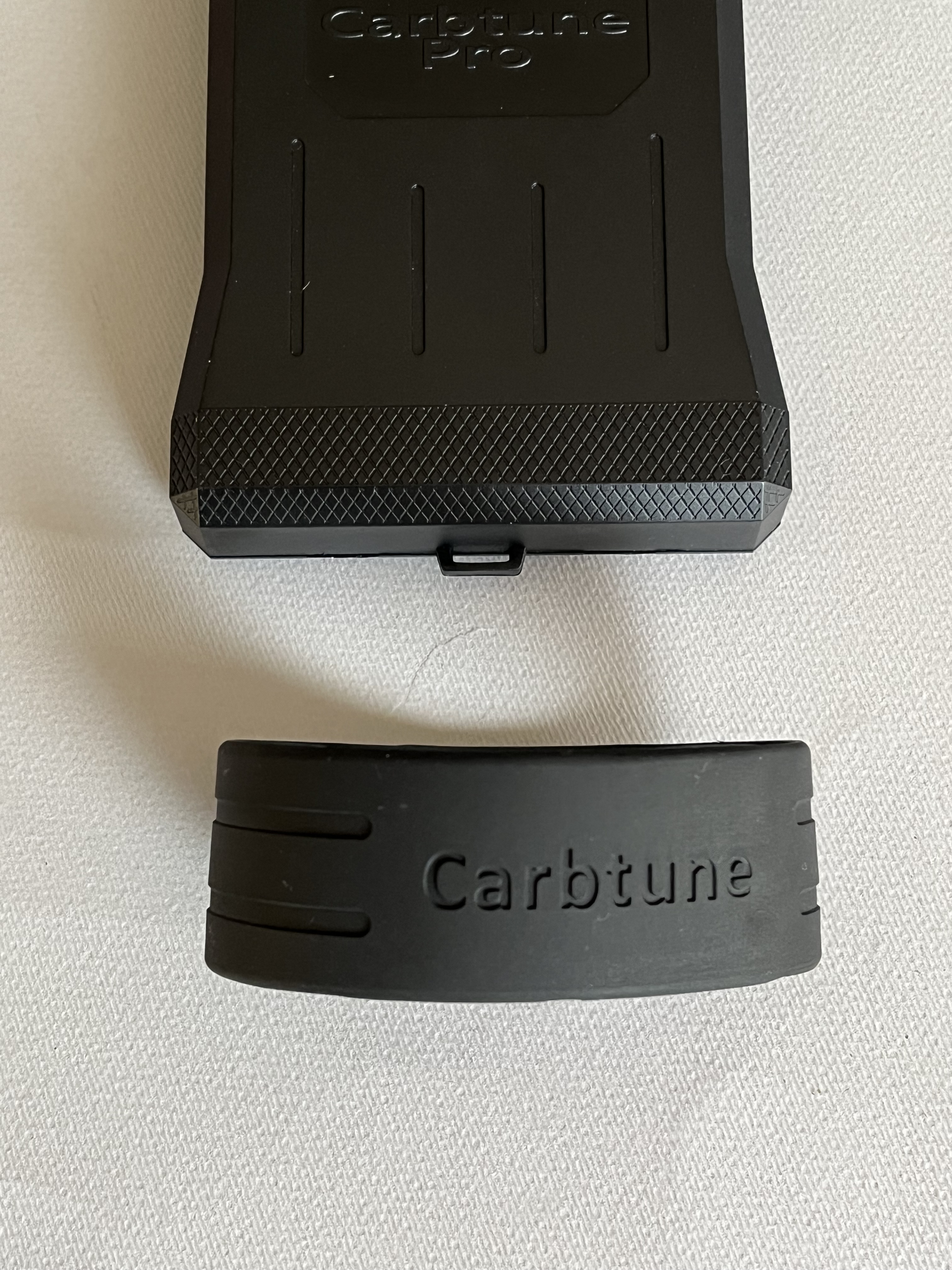

Description

The Carbtune Pro is a mechanical manometer. It is an upgraded model of the previous Carbtune II(In the instructions the four column model is described. The 2-column model has half the contents of the 4-column.)

It gives four simultaneous readings so you can balance the throttle valves on carburettor or fuel injection bodies. (In the instructions the term “carb” refers to both fuel injection throttle bodies and carburettors.)  Stainless steel rods indicate the vacuum on the scale. The clear tubes are made from high impact plastic. Damping is by a small airflow restricter in the rubber connecting tubes.

The manometer must be used vertically for a scale starting at 8cmHg (centimetres of mercury. 1 inch=2.5cm 1cm=0.4inches) and going to 42cmHg. Most bikes have readings higher than 8cmHg, but some bikes such as R-series BMWs and two strokes can have readings lower than this.

To get a reading below 8cmHg remove the plastic cable clip from the slot at top of gauge and insert it into the slot at the bottom. Push cable clip into slot from front of gauge. Hang the Carbtune Pro upside-down.

Ignore the scale figures. Zero will now be around 16cmHg on the scale but the full width scale graduations will still be 2cmHg. Absolute values are not important. Comparisons are important.


Espanol | Dutch | French | German | Italian  |Ελληνικά

|Suomeksi | Russian |Francais |Polish |



skip to setup the gauges

skip to use the guages

skip to maintenance of the gauges

skip to problems

skip to guarantee



In these instructions the four column model is described.

The 2-column model has half the contents of the 4-column.



The term “carb” refers to both fuel injection bodies and carburettors.



Contents

The Carbtune Pro, rubber tubes, plastic cable clip to hang gauges from the handlebars, inside the small plastic bag there are 4 x 5mm adapters, 4 x 6mm adapters and one fine bore thick wall clear plastic tube about 8cm (3”) long by 5mm (0.2”) diameter to make the restricters.

The ultra-high temperature 30% glass filled engineering Nylon 66 adapters have several advantages over brass adapters. They’re easier to use. They screw in and out easier and don't need as much tightening. They won't damage the inlets if over tightened. They do not transmit the heat as much so it's kinder to the rubber hoses and you don't burn your fingers as much removing them. There is a slot on the spigot so they can be removed with a small screwdriver. Do not tighten with a screwdriver.

back to top



Set-Up

Damping. The restricters must always be used.

Without restricters the rods will fluctuate wildly. There are two components to the damping.

1. The small amount of friction between the rods and guides which is overcome as soon as the pulsating vacuum of the engine is connected. This friction can vary from tube to tube in the Carbtune and is not a fault.

2. The air-flow restricters that fit inside the rubber tubes and damp the fluctuations. There will always be a small amount of fluctuation and this is necessary for the gauges to work properly. Do not oil the rods.




How to make the dampers

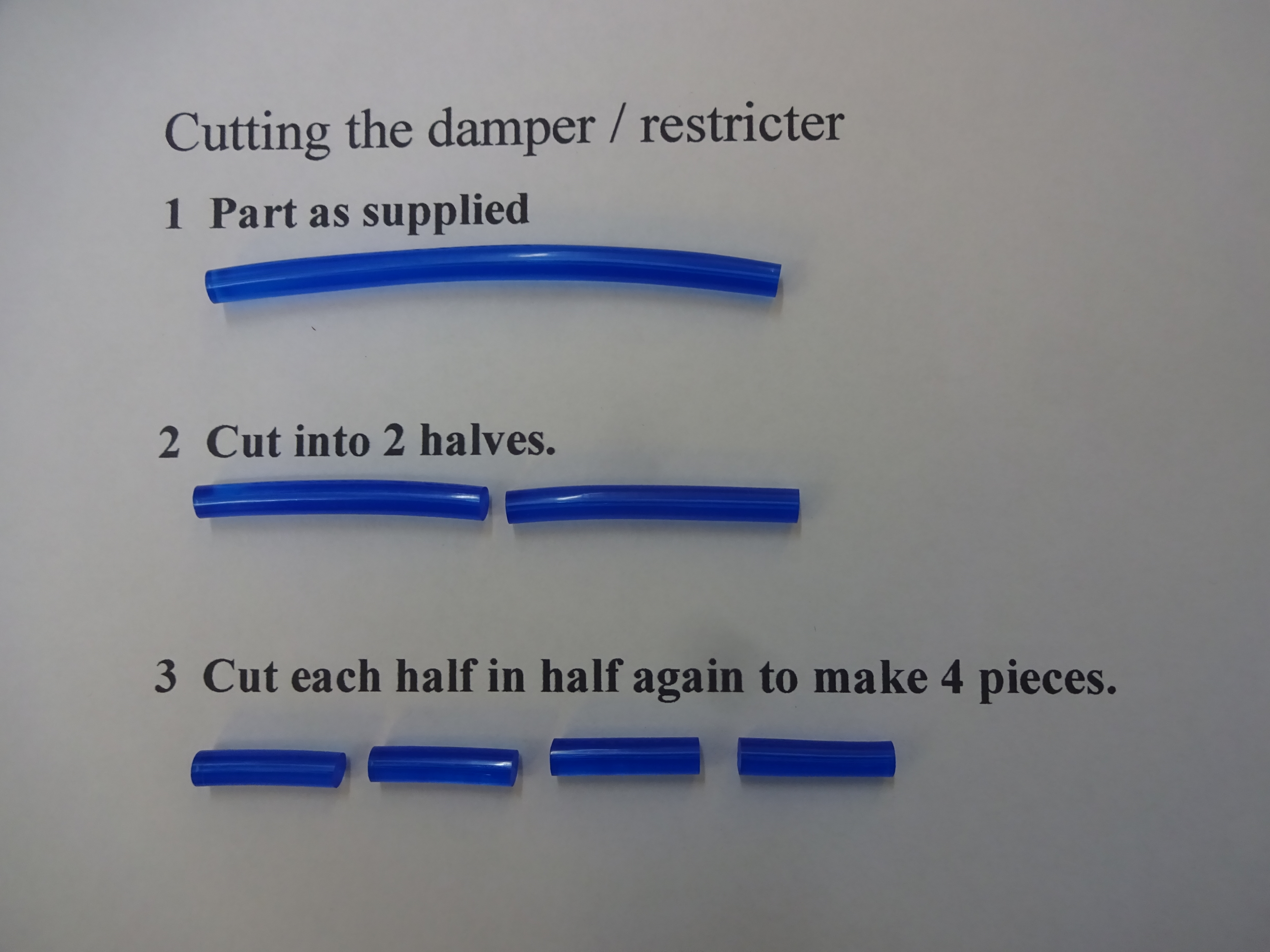

Refer to drawing opposite. In the bag with the adapters you will have received a fine bore thick wall clear plastic tube (No 1). It is about 8cm long x 5mm diameter. With a craft knife cut the thick wall tube into four roughly equal pieces. These are the four restricters (No 2). (For the 2-column the tube is about 4cm long and is cut into 2 pieces.)

Cut about 10cm (4”) off the end of each 1 metre black rubber hose. Push a restricter into the 10cm rubber hose. Now push the remaining 90cm (3ft) rubber hose onto the other side of the restricter (No 3). Do this for each hose.

The length of the rubber hose is not critical. You can make them longer by adding more hose. The restricters need to be about 90cm from the Carbtune. The longer the tube between the restricters and the Carbtune, the more the damping. The shorter, the less the damping.

The restricted part of rubber tube must go towards the engine, not the Carbtune. If the restricters are beside the Carbtune it will not be properly damped. The restricters will reduce fluctuations to acceptable levels for most bikes but some bikes may still give readings that pulsate too much even with the dampers in place. Moving the gauges very slightly off vertical will add some extra friction and damping but make sure the rods are still pulsating slightly or the readings may be affected.

The rods need to pulsate to some degree for the gauge to work properly.

back to top



Make and connect the dampers

see detailed photos

Using the Gauges

The gauges are calibrated in CmHg (centimetres of mercury).

Hang the gauges vertically from the left handlebar grip or other convenient position (lifting handle on BMW twins) using releasable cable clip.

The clip fits into the slot at top of gauge and you push it into the slot from the front of the gauge. (Release clip by pushing the two tabs to open the jaws).

If your bike needs the adapters remove the blanking screws from the inlets, then connect the adapters to your bike. Remove and blank off any balance pipes.

For removal only there is a slot in the end of the adapter to use a screwdriver to remove it. If the adapters feels tight let the engine cool first before removing. Do not under any circumstances use a screwdriver to tighten the adapters.

Make sure the adapters are seated but don't overtighten. Finger tight using fingers not tools.

Other makes have stubs on the inlets covered by rubber caps or tiny screws which you remove. (On a very few bikes the stubs are of a very small diameter and need a sleeve-down tube to connect.)

Push the rubber tubes onto the spigots on top of the gauge. Make sure you have the correct tube connected to the correct inlet. Keep rubber tubes and the gauge itself away from hot exhausts and make sure the rubber tubes are not kinked or flattened. Route rubber tubes over handlebar grip as shown in photo above.

After use remove black rubber tubes from gauge first then from the inlets. Hang rubber tubes to drain any fuel from them. When using if there is any blowback of fuel into the gauges hold them high, upside-down and connected to a running engine until all fuel has disappeared from gauge scale tubes.

Remember the engine and exhausts are hot so be careful with any spilt fuel as it is a fire risk.

back to top

Guage hanging from handlebar

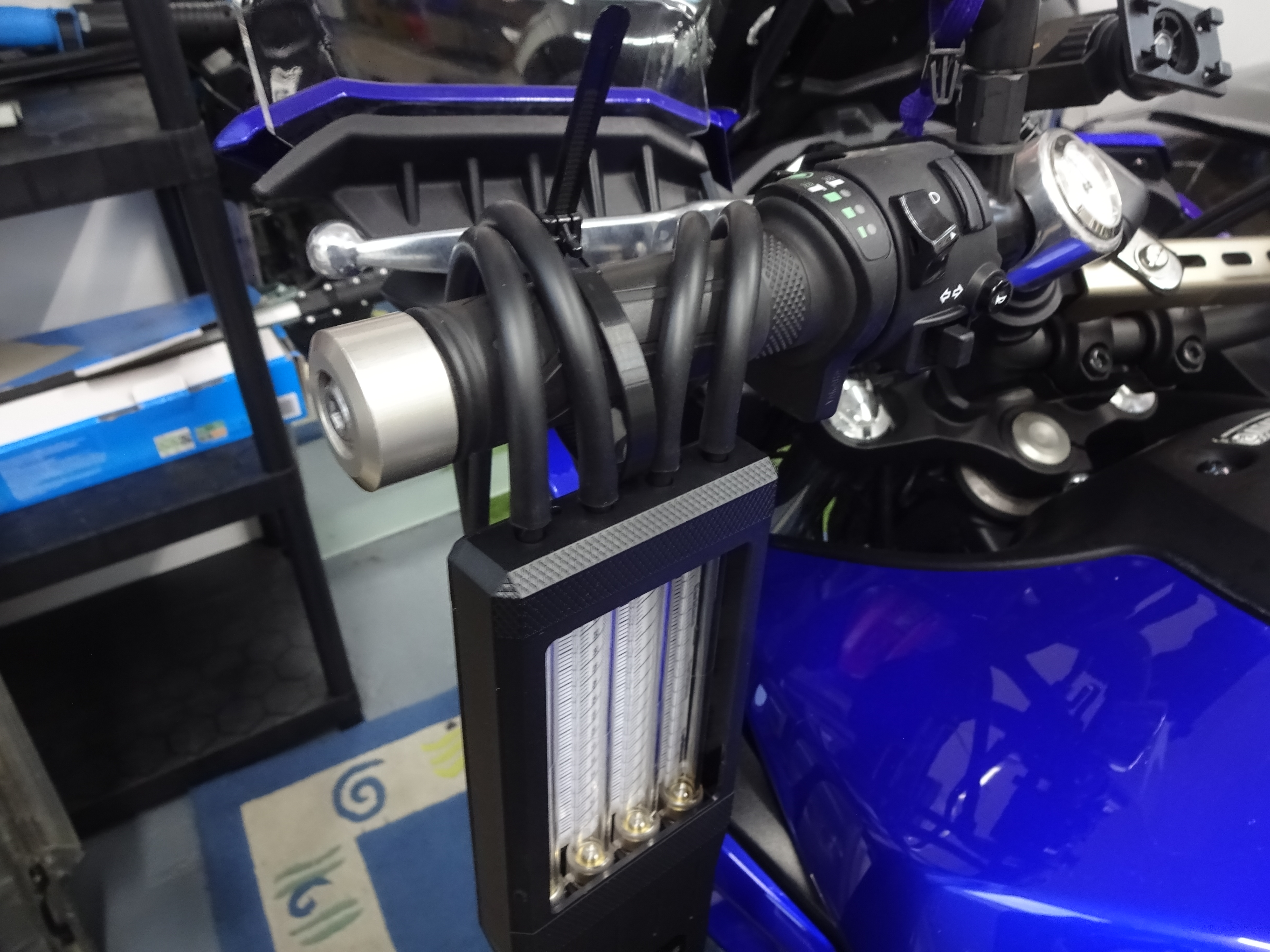

Hang the guages from the handlebar using the clip supplied

Attaching the clip

For difficult to get at inlets cut 1 inch of rubber from the end of one of the rubber tubes and push it onto a ball-point pen. Push the adapters into the other end of the cut off rubber and use the pen as a flexible extension to screw the adapters in and out of the inlets.

General Hints

Read your workshop manual. The engine should be warm and running at just enough above idle speed so it doesn’t falter and stop during adjustments. Don’t try to balance at high engine speeds. Adjust to makers specification or average of initial readings, but the readings should be balanced to within 2 cmHg (some models up to 4 cmHg) of each other.

Adjust in small amounts, waiting a few seconds between each part adjustment. Write each adjustment down so you can go back to the original settings if necessary.

If lending gauges to a friend please ensure your friend has a copy of the instructions and is familiar with the gauges.

back to top

Ideally balance the throttle valves after you have serviced the rest of your bike.

A Guide to Carburettor Synchronizing

Carb balance will affect the response, smoothness, mileage, performance and running temperature of your engine.

Carb synchronisation consists of adjusting each throttle valve for carburettors or fuel injection throats so that they pass as much fuel-air mixture as all the others. This balances the load carried by each piston.

If one carb is opened further than the others that cylinder will run hotter than the others. The other carbs will also supply a richer mixture and mileage will suffer.

The actual mechanics of carb balancing vary a lot. Some bikes are balanced by adjusting the relative length of the throttle cables (R series BMWs) while others have a system of levers with adjustment screws but they all adjust the relative position of the throttle slides or throttle butterflies of each carb to each other or to a master preset carb.

A workshop manual for your model is very useful as the balancing procedure for different models can vary in detail. Familiarise yourself with the section on throttle valve synchronizing.

We assume that anybody using the Carbtune will have some knowledge of the mechanics of their vehicle particularly in regard to safely removing the fuel tank. If you feel unable to do this or the other tasks safely it will be better to leave them to an expert.

back to top

Carb adjustments should always come last when servicing or rebuilding your bike. The rest of the bike should be in good tune before balancing, and that means the points, plugs, ignition, tappets, air filter and oil, should all be in proper service.



Air leaks between the airbox and carbs, carbs and cylinder head inlets, and in the exhaust system or any blockages in these systems will affect the carb balance and should be rectified before starting.



Step 1:

Fit the gauges to the carbs. Warm the engine until it will idle reliably without choke. The engine should not be at full operating temperature at this point as it may lead to overheating later. If you have a fan place it so that it blows cold air over the cylinder head or radiator. Don't remove the fuel tank at this stage unless it is necessary to do so to connect the gauges. Work in a well ventilated area so that the exhaust fumes will dissipate.


Fitting the hoses to the carbs

Step 2:

Set the engine to slightly above idle by adjusting the master idle screw, then read the gauges.

Some workshop manuals specify a vacuum reading, usually at a high idle. The full width scale lines on the gauge are 2cmHg apart and most factories specify the total difference between the lowest and highest readings should be 2cmHg.

If the carbs need to be balanced then switch off engine and remove fuel tank (most bikes) so that you can get at the adjusters. On some bikes you can turn the tank back to front and set it on the seat or rear frame and still be able to reconnect the fuel lines. Secure tank with plenty of luggage straps.

If the fuel taps are vacuum operated set them on prime. Remember fuel is dangerous both as a fire risk and fume inhalation. Be very careful.

If you use an extension fuel line with a remote tank (something like a lawnmower tank) keep it roughly at the same height that your fuel tank would normally be. If you are very experienced you may be able to balance your carbs with the fuel left in the float bowls. (Click here to see a customer's design for a remote fuel tank)

Make sure that the vacuum gauge lines are correctly routed so that you don't find yourself adjusting the wrong carb.

back to top

Unbalanced

Yes, this bike needs adjusting

Step 3:

Start the engine and determine which throttle valves have to be adjusted. If there is a master carb all the others will have to be adjusted to match it. If all the carbs are adjustable find one that is nearest to the middle reading and use it as the reference carb.

Adjust the carbs until all the columns are within 2cmHg. It doesn’t really matter whereabouts on the scale the readings are as long as you get them all to within 2cmHg of each other.

The carbs are very sensitive to adjustment and even doing up the locknuts can affect the readings.

There are special tools available from the importer or tool specialists to make this easier but you can do the same thing by using a small box spanner to hold the locknuts and with a long screwdriver down the centre to turn the adjustment screw. Or buy the Carbtool.

The individual adjustment screws can be found on the side of the carbs or on the operating linkages. On some carbs they are under the carb tops which have to be removed. Some models have spring loaded adjusters which are easier to adjust.

Where each carb has an individual adjuster check to see that each carb has enough adjustment left. If one is almost out of adjuster threads then turn all of them back a couple of turns and set the cable adjuster and master idle screw to match.

Adjust one carb and then check the reading. Give the gauge a few seconds to settle after each part adjustment. It is often necessary to gently blip the throttle to seat the carb that has just been adjusted.

It is a good idea to write down all the adjustments you make. This way you can go back to the original settings if you make a mistake.

back to top

On older Suzuki models with CV carbs (except GSX400F) the two outside carbs are set about 2.5 - 3.0cmHg higher than the inside pair. For specific model details consult your workshop manual or the Suzuki importer. (If the airbox has been removed set all the carbs the same).



Adjusting the screws

Adjust the carburettors to get the readings as even as possible

Checking the guages



Step 4:

When all the carbs are within 2cmHg, tighten the locknuts if applicable, making sure you don't upset the readings.

Switch off the engine, remove the gauge fittings and replace the blanking screws or caps on the bike. It is sometimes easier to remove the adapters if you let the engine cool down. Replace the fuel tank and ride the bike for a few minutes to get it to its normal temperature, then set the idle speed with the master idle screw.

Modern bikes hold their carb settings very well and you shouldn't have to adjust them more often than once every 5,000 miles. Older machines can be more difficult to balance to within 2cmHg and need more frequent adjustment. Bikes like BMW twins with separate cables for each carb also need more frequent adjustment.

As long as the rest of the bike is in good tune and you have some patience you will find it fairly easy and very rewarding to balance the carbs.

back to top



Balanced!

To between two red lines, and that's it!

What do the readings mean?

The absolute readings aren't important as long as they are within the manufacturers specifications. It's the comparative reading that's important not the absolute values.

If one carb has a significantly different reading to the others there can be several reasons for it.

It may be at the end of it's adjustment so you'll have to back off all the adjusters and start again.

It may be that a rubber tube has been wrongly routed so that you have been adjusting the wrong carb or that the rubber tube is kinked or flattened on its route to the carb or is loose.

Possibly there is a leak in the carb to airbox or carb to head joints.

It may be an engine fault and a compression test can help to pinpoint the problem.

If you suspect there is a leak in the intake manifold let the engine idle and spray a fine mist of water around the inlet area. A drop in engine speed can indicate a leak in the inlet system.

back to top



Information on the Gauge

Gauges do not need to be zeroed or calibrated. All parts have been matched at assembly.

Damping of the gauges and friction of the rods may be slightly different in each column. This does not affect final readings, only the time it takes to get there.





Maintenance of the Carbtune

If dirt or grease gets into the gauges and makes rod movement sticky then they can be cleaned.

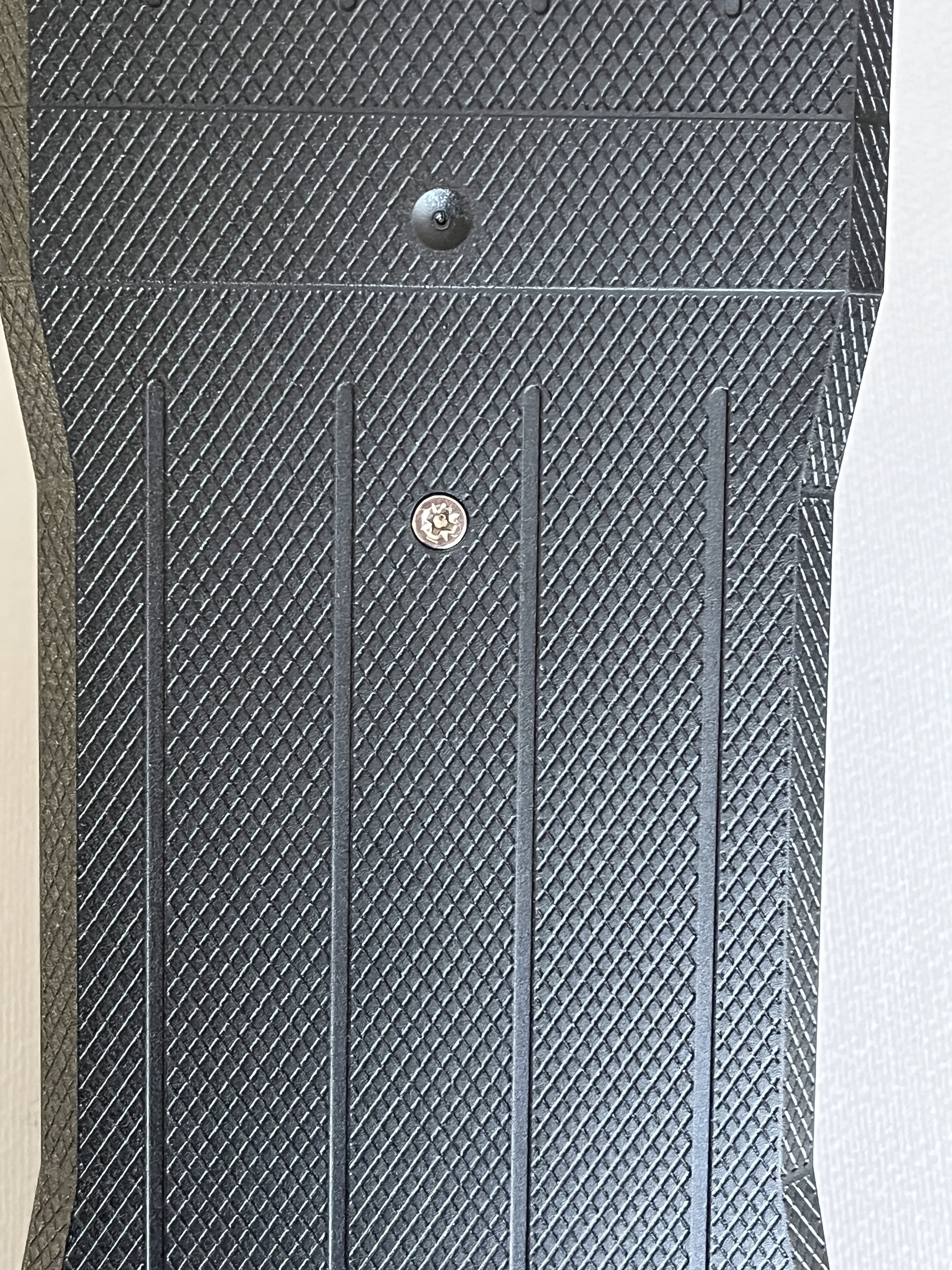

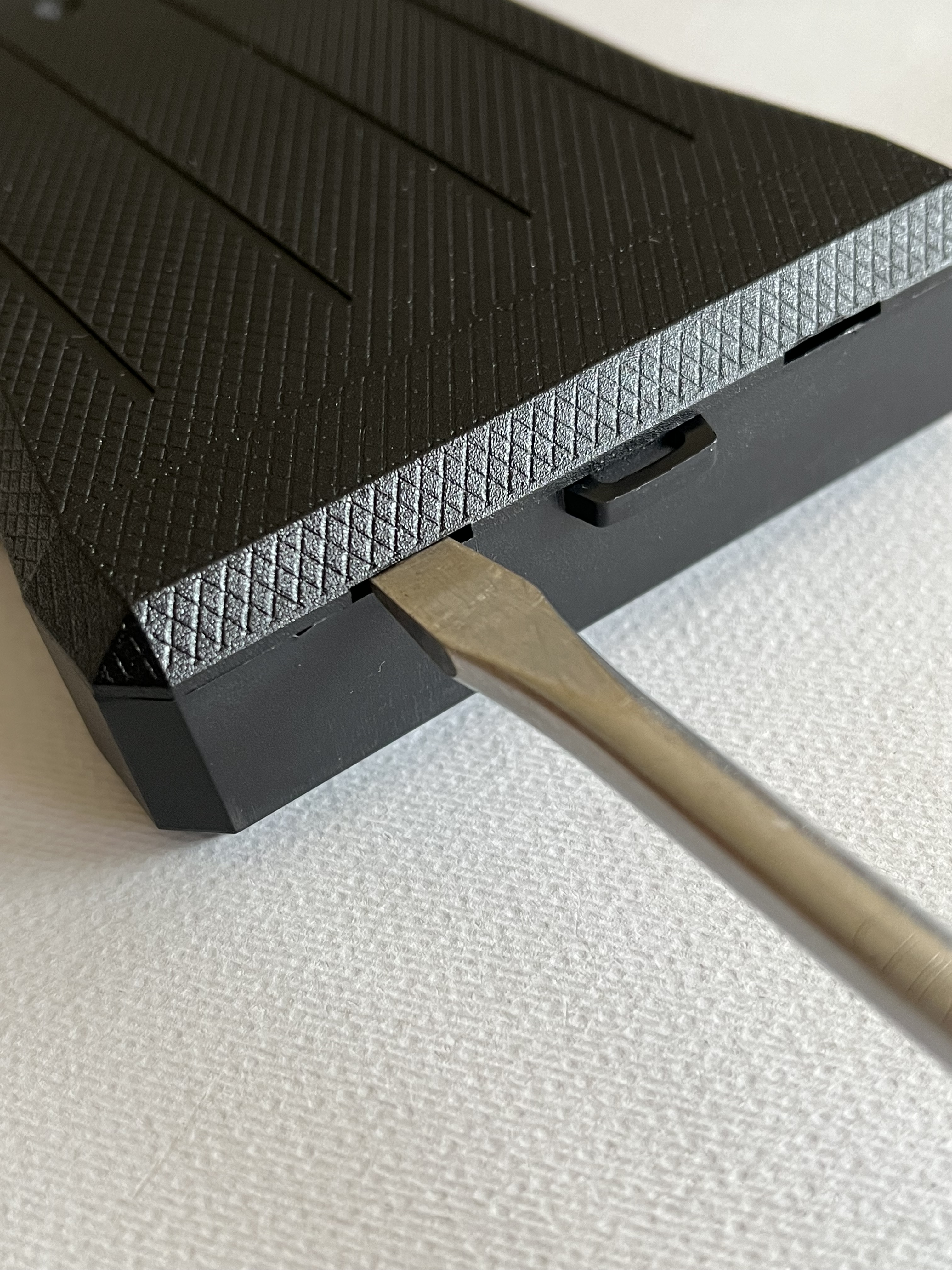

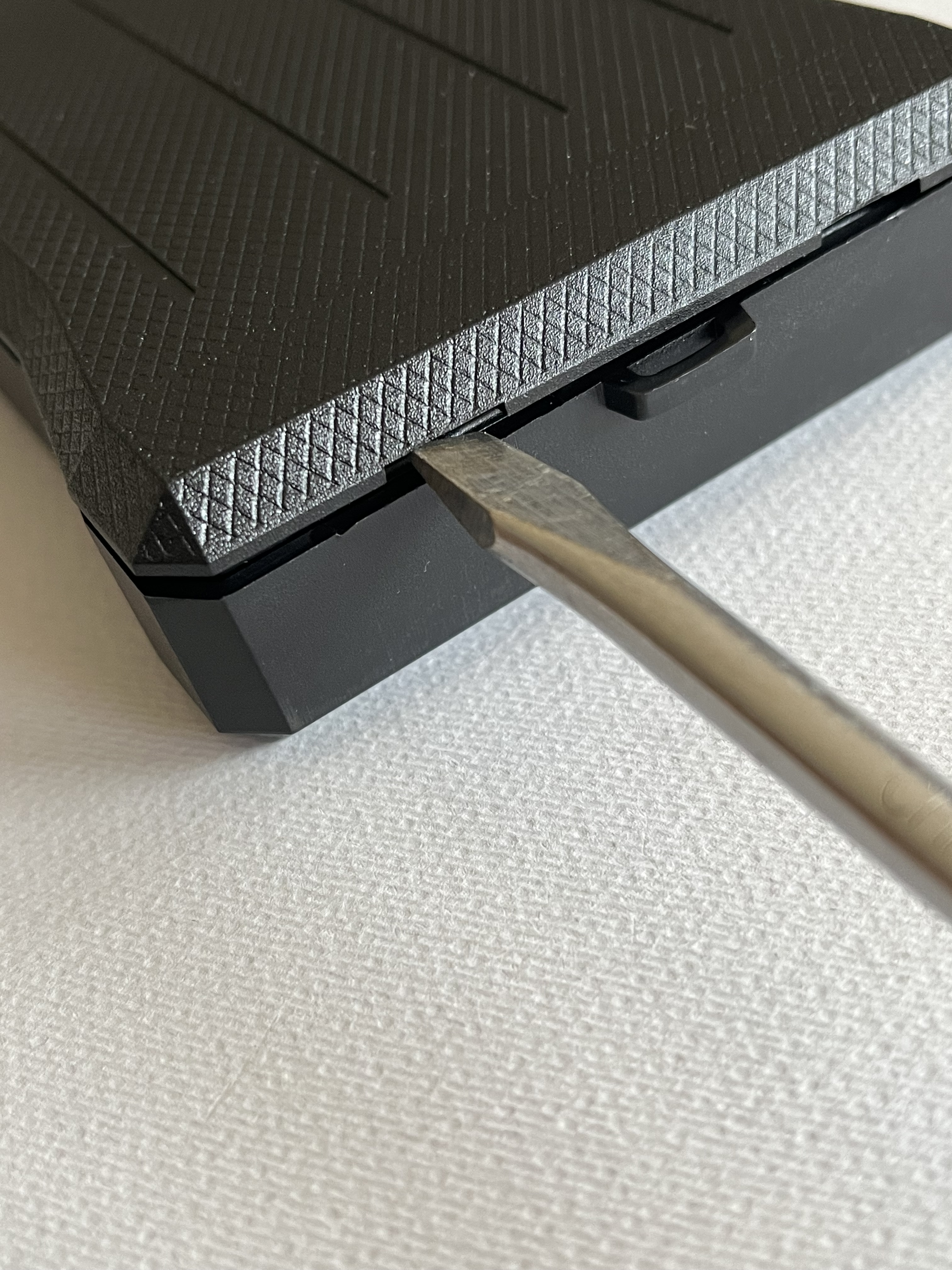

Lay gauge flat on its front and remove the four screws holding the back plate in position. Remove the backplate. You will see the rod and tube assemblies. At the middle of the rod tube assembly you will see the brass rod guides. Each tube clips into the gauge at the brass guide. You will need to release the guide from the push fit clip. Just pull it up (away from clip) slightly (or push from the front) and it will spring out of the clip and be at an angle. The top part of the tube with the black spigot will remain where it is. Slide the rod and spring out of the brass guide. Do not remove the brass guide from the clear plastic tube. There is no need to remove the tube assembly from the casing. On reassembly slide rod into guide. It is too long to go back into the casing unless you slide it into the guide a few centimetres. Align the lugs on the clear plastic tube and push the brass guide until it locates into its clip.



Important - Each rod, spring and washer must go back in its original position and the right way up. (The flat side of the washer goes towards the spring) Do not mix. Do not put loose springs together as they will tangle.

For simplicity only remove one rod at a time for cleaning. Carefully remove spring from rod and polish rod and inside of rod guide with a cloth. Do not scratch.

For severe staining use a brillo pad or the finest steel wool to polish rods. Wash and dry thoroughly afterwards. Only assemble when dry.

Do not remove brass guides or black spigots from the clear plastic tubes. Contact us for advice first

But remember "if it ain't broke don't fix it."

back to top

For permanent adapter fixture in the engine do not use an O-ring but use high temperature locking thread sealant with brass adapters available here.

Or make an  extension kit.



Spare parts are available from Morgan Carbtune at the address below. Ring, fax, write or email for price details.



Problems

Check the FAQ page for common question and answers. Any instruction updates or amendments will also feature on the website.

The Carbtune Pro and previous Carbtunes have been tested and used on many different bike, car, marine, and aviation engines. Obviously we cannot test every bike, car, boat or plane so if you encounter any problems with the operation of the gauge or find the supplied range of fittings don't fit then please contact us with the details. Quite often problems can be quickly sorted out over the phone or by email.





Guarantee

Carbtune is guaranteed against defects in materials and workmanship for a period of 12 months from the date of purchase. Should your Carbtune be damaged through such a defect, please contact the manufacturer, details overleaf.

We will repair or replace the equipment (at our option) provided you have followed the usage instructions. This does not affect your statutory rights as a consumer.

Specification may change without notice.
